Overview

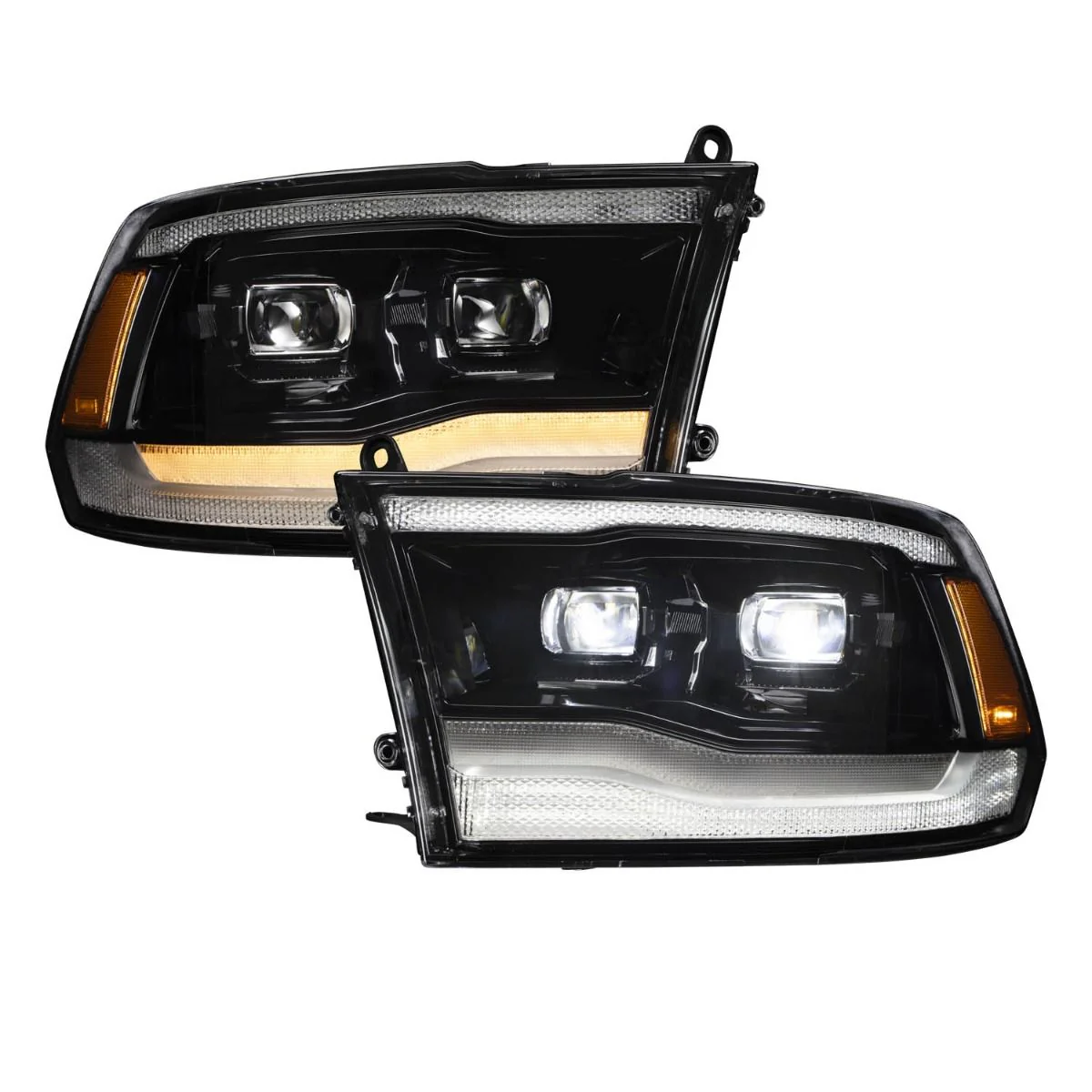

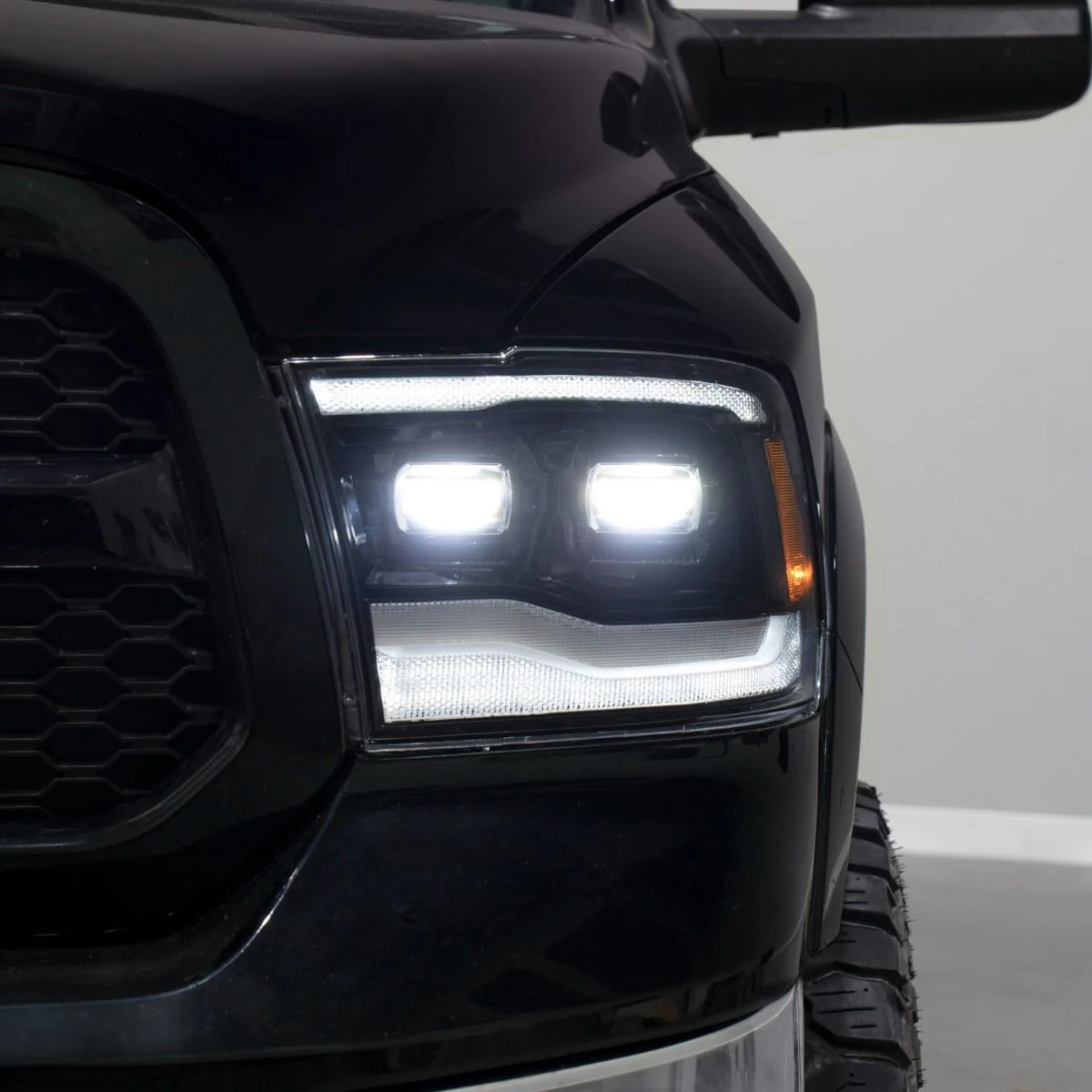

Your 2009-2018 Ram deserves an upgrade, and Sequential LED Headlights from Form Lighting are the perfect way to do it. These headlights were specifically designed to mimic the premium OEM design of the 2019+ Ram, giving your truck a modern feel on the road. With these premium OE-grade replacements, you’ll add full LED housings with two dual-beam projectors, sequential turn signals, startup sequence, LED running light, and a more aggressive, blacked-out appearance.

Dual Projectors. What’s better than one projector? Two projectors. And in these headlights, they are both dual-beam units, providing output for low beam and high beam illumination. With a sharp cutoff, broad width, and high intensity, these units provide a serious upgrade in output.

Startup Sequence. These headlights are packed with the latest and most modern lighting functions, including a startup or “welcome” sequence that is sure to turn heads. Anytime the running lights turn on, the LEDs will sweep across the top and bottom of the lamp before fully illuminating your DRL, providing an ultra-premium look.

Sequential Turn Signal. The lower section of these headlights features a bright and highly distinctive sequential turn signal. Activating any time your turn signal is activated, the amber LEDs smoothly sequence from inside to out, with an extremely modern look.

OEM-Grade Construction. Form Lighting headlights are built with quality in mind, using OE-grade materials and design techniques. This includes durable UV-coated polycarbonate lenses, automotive-grade LED emitters, breather vents, and OEM plug-and-play connectors. They are assembled in an IATF 16949-certified facility, which is a quality management system designed for the automotive industry. While they may not be the cheapest option you’ll find, you can rest assured that these lights will provide durable and superior performance.

Road Legal. Form Lighting headlights meet all SAE, DOT, FMVSS, and CMVSS standards and regulations for legal on-road use in the United States and Canada, when installed and aimed properly - which is easy to do with the integrated screw-type adjusters.

Plug-and-Play, Bolt-On Install. Our headlights for the Ram are completely plug-and play for both halogen and OEM LED models and will fit perfectly, without any gaps. Adapters are included for OEM halogen models and were designed to plug into your factory headlight connector, with no wiring modifications needed. No errors, flickering, or hyperflashing! A fusebox wire harness is also included to power the running lights, if your truck doesn’t come with daytime running lights (non-DTRL) from the factory.

Two-Year Warranty. All Form Lighting products are rigorously tested for reliability, and backed by a two-year warranty. The warranty is supported directly by Form Lighting, and any replacement parts, if needed, are shipped quickly from Form Lighting’s US warehouse. In the rare occasion that you may need to utilize your warranty, we try to keep the process as simple as possible - for example, no return is normally necessary.

Quantity: Pair (Left and Right Side)

Fitment

Application: Headlamp

Make: Ram

Model: 1500/2500/3500

Years: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

SPECIFICATIONS

Power (watts): 42

Operating Voltage: 9-16V

Operating Temperature: -40C to 85C (-40F to 185F)

Connector(s): OEM-Size Plug and Play

Materials: UV Coated Polycarbonate Lens

Intrusion Ratings: IP67 Weatherproof

Unit Weight (lb): 10

Product Weight (lb): 20

Shipped Weight (lb): 22

Application: Headlamp

Make: Ram

Model: 1500/2500/3500

Years: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

Quantity: Pair (Left and Right Side)

2009 - 2018 Ram 1500/2500/3500
